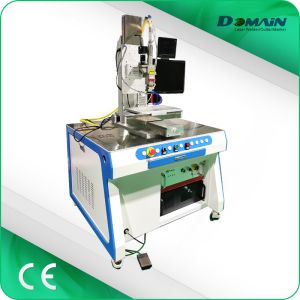

Automatic Fiber Laser Welding Machine For 4mm Silicon Steel Sheet
Aluminium Brass
Introduction
The fiber continuous welding machine is a high-end, new type of
welding method.
It is generally composed of a "welding mainframe" and a "welding
workbench".
The laser beam is coupled to the optical fiber, and after being
transmitted over a long distance,
it is processed into parallel light. Focusing on the workpiece to
perform continuous welding,
the welding effect is stronger due to the continuity of the light
output, and the weld seam is
more fine and beautiful. According to the different needs of
different industries, the equipment
can meet the needs of users in different industries according to
the matching shape and workbench on the production site and the
automation work.
Feature
Separate the workbench and the host system, the laser output
position flexibility, to facilitate the customer welding various
size and shapes of the workpieces
Professional motion control software, single-chip set graphics
mode, you can complete the automatic or semi-automatic spot
welding, butt welding, stack welding, sealing welding, single-line
straight line, arc and another trajectory welding. Optional rotary
workbench, you can solder cylindrical objects and various shapes of
objects.
Weld quality is good. Its appearance is flat and no pores; welding
frequency can choose the maximum from 50 to 100Hz, wire speed up to
18mm / s, greatly improving the welding efficiency and weld
quality.
Current wave forms are arbitrarily adjusted: different wave forms
can be set according to the different material, so that the welding
parameters and welding requirements match to achieve the best
welding effect.
After welding the material tenacity is good, at least equivalent to
the parent material.
Application
This machine is fit for golden, silver, titanium, nickel, tin,
aluminum, stainless steel, copper which is widely use in Aerospace
industry ,Marine manufacture industry., Instrumentation manufacture
industry, electro - mechanical equipment, vehicle manufacturing
etc.
Parameter
| Model No. | CY-WD1000 |
| Laser Power | 1000W |
| Laser Source | Fiber 1080nm |
| Optical Connector | QBH |
| Modulation Frequency | <10 k Hz |
| Max Welding Depth | ≤3mm |
| Adjusting rang of light spot | 0.2 - 2.0mm |
| Cooling System | 1HP water chiller |
| Power Supply | 220V±5%, 50Hz |
| Power Consumption | 5Kw |
| Fiber Delivery Length | 10 meters |
| Observing System | CCD and LCD display, with red pointer |
| Control System | Industrial PC with CNC 2000 or LC5 |
| 3-axis Travel Distance | X=300mm,Y=200mm,Z=300mm (all electrical, precision ±0.02mm) |
|
| Data Memorization | 100 groups |
| Illumination | LED circle lamps |
| Language Display | English & Chinese |
| Shield Gas Supply | 1line, argon |
| Running Environment | Tem 5°C-40°C, Hum 5%-85% |
